Full Information for a Solar Residential Grid System
Consumer Data
Model - Sharp Solar 1792 Watt Grid-Tie System
Make This WebPage instantly available in other languages
Make This WebPage instantly available in other languages
|
Solar Residential Grid System |
Special price starting at: $10,466.00 ($5.84/watt)
The
main components you need at a great price
Our
Value Line of grid-tie solar kits have all of the main components for installing
a solar system in any state. These discount-priced systems are an
affordable way to produce energy that will reduce an electric bill by feeding
electricity back into the electrical utility grid.
Sharp Solar 1792 Watt Grid-Tie System - with
(Fronius IG2000 Inverter)
· Available for any roof type, ground mount also available.
· State rebate programs are available for many states in the USA! These include: Federal tax incentives are also available for all states.
Visit http://www.dsireusa.org/ for more rebate information.
| INCLUDES: | |||||||||||||
|
8 Sharp ND-224U2 224 watt polycrystalline solar
modules Poly-Crystalline Solar Module with 224W Maximum Power
| |||||||||||||
|
Solar
Roof or Ground Mounting Kit including rails and clamp
sets.

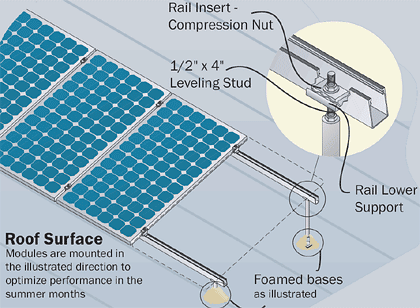

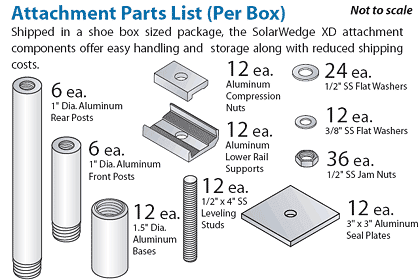

Solar Wedge Mounting System The system provides an easy to install and economical solution for 5, 10 or 15 degree structural attachment.
The system dramatically lowers installation and shipping costs while optimizing installed wattage on the roof. Solar Wedge Advantages of the Solar Wedge:
Leveling
Feature
FoamJack FOAM
FLASH
| |||||||||||||
| Fronius IG2000
Inverter
Wiring
diagram | |||||||||||||
|
MC Extension Cables Multi-Contact Cables and Connectors
For the past few years, modules have come with Multi-Contact Solarline 1 connectors which have a soft rubber insulator. In 2007, PV manufacturers began switching to Multi-Contact Solarline 2 locking connectors to meet future electrical code requirements. The Multi-Contact plug-and-play connector system allows for the PV arrays to be pre-assembled and pre-wired in the shop or on site. We stock both styles of cables in standard pre-cut lengths. Solarline 1 & 2 Array Output Cables Use these output cables between PV arrays with Multi-Contact cable outputs and junction boxes or grid-tie inverters. Both the original Solarline 1 and the new Solarline 2 have a male connector on one end and a female connector on the other end. Use them to extend module output cables or cut anywhere along the wire to obtain the needed length of male and female cable to run from the ends of a module string to a combiner box or to an inverter. For example, if you need a 30' male and a 20' female, order a 50' cable. These are made with black #10 AWG USE-2 sunlight-resistant cable.
| |||||||||||||
INCENTIVE STATE AND FEDERAL PROGRAMS ARE ELIGIBLE FOR MOST STATE.
Special price starting at: $10,466.00

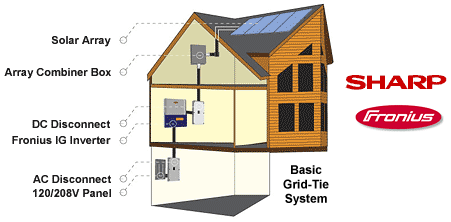

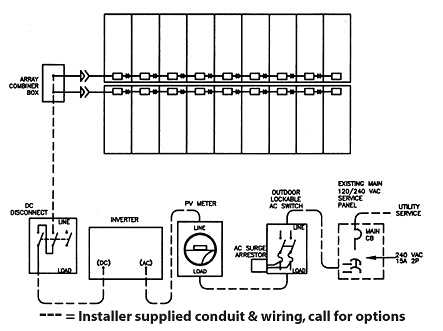

Diagram of a
Typical Gridtie Solar Power System
All systems can be customized!
Different module mount, module, inverter and
voltage options are available. Contact
us
State
and Federal Incentives
Many states and municipalities offer
significant incentives to encourage installing a solar system. Federal tax
incentives are also available.
All systems we carry follow the strict guidelines set by government agencies for incentive eligibility.
These systems are specifically designed to meet all rebate incentives offered by many states.
Solar Roof Trac (Residential Mounting System)
Our
standard residential grid-tie systems include the Rooftrac support rails &
module clamps.
Choose one of the mounting support
options for your roof type below:
Mounting Support Options:
• Fast Jack
• Tile Track
• Tilt-Up Kit
• Rail Splice Kit

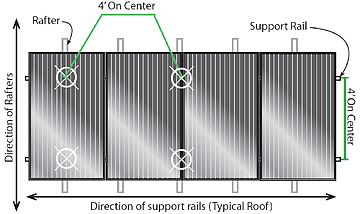

Roof Trac Support Rail
The Rooftrac photovoltaic (PV) solar panel mounting system is a patented top-down roof mounting solution designed and manufactured with the installer in mind. This innovative design incorporates anodized lightweight aluminum components to allow for maximum transportation and installation efficiency. The lightweight nature of the aluminum rail utilizes the basic laws of physics to create structural competence rather than just bulking up the rail in height adding unnecessary and costly aluminum. With this design, the RoofTrac system system holds the lowest engineered profile to the roof in the industry.
1.5" Rail
Channel Nut
The RoofTrac mounting system has been load-tested and engineered to 125mph wind load (50 lbs/square foot of pressure load) for most module types. Roof Trac secures the solar panels and prevents damage caused from high-winds and seismic forces. The Roof Trac support rail was designed to conceal all attachment hardware. All connections are made inside the support rail hidden from view. All exposed aluminum is fully anodized to module manufacturer specifications. The Roof Trac rail must be drilled on site for connection to Tile Trac or Fast Jack.

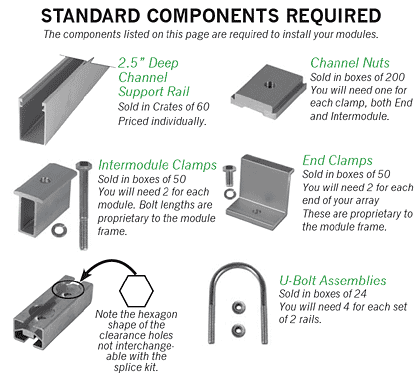

Module Clamps
End Clamps
Inter-module
Clamps
The clamping system consists of end clamps and mid clamps to attach the module frame to the Roof Trac support rail. This fully integrated clamping system actually changes the structural properties of the aluminum channel making it significantly stronger. This design allows solar modules to be installed at a lower profile to the roof, providing a more aesthetically pleasing installation. Module clamps are specifically designed, extruded and engineered for each specific module frame. Our innovative clamping system provides inward tension on the module frame securing the laminate in the frame. Channel nuts slide easily into position to hold the end clamps and mid clamps.

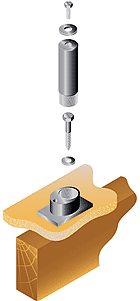

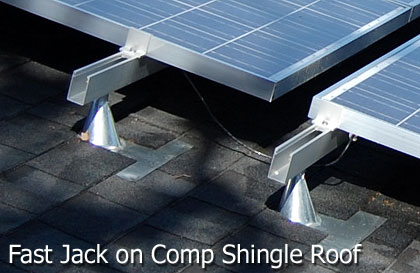

The Fast Jack attachment provides a quick and strong installation solution. The patented design places the bolt directly under the stanchion post where it provides the most support. This feature allows standard roof flashings to lay flat on the roof deck. The removable post allows flashings to be slipped over the base without damaging surrounding composition shingles.
The FastJack is an engineered and flashable roof stanchion designed for optimum strength while using a single lag bolt.
Specifications
Materials: Tumbled Aluminum
Stainless Steel HardwareEngineering: 2,359 lbs Vertical
808 lbs. Side AxialProduct Integration: RoofTrac Integration Order #s: FJ-300-18 (3" Box of 18)
FJ-450-18 (4-1/2" Box of 18)
FJ-600-18 (6" Box of 18)
FJ-750-18 (7-1/2" Box of 18)
 |
|
 |

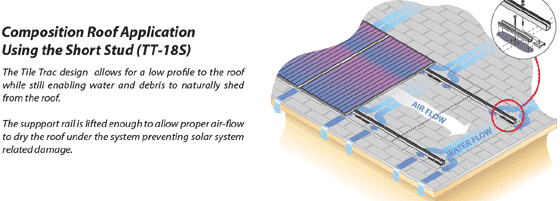

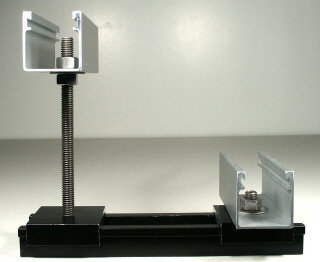

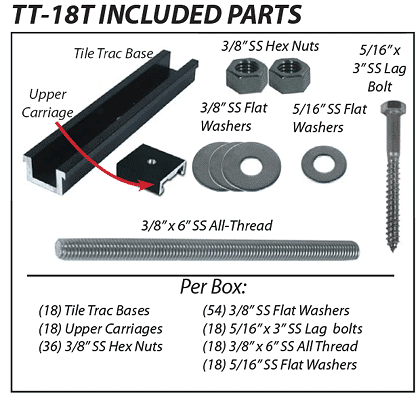

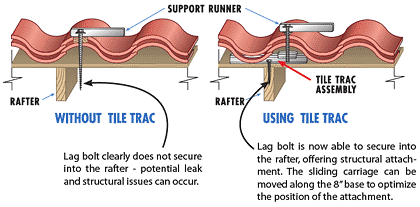

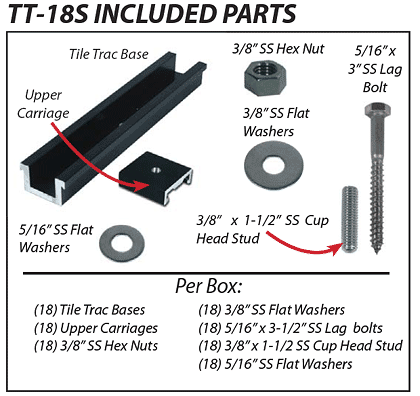

The main advantage of
the Tile Trac The Tile Trac
attachment system is the perfect
|
|
|
|

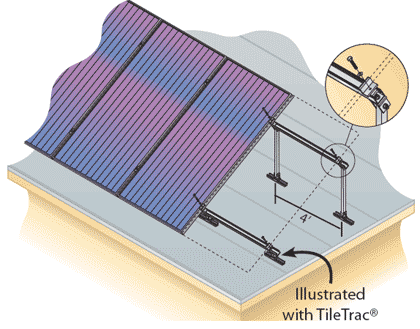

The Rooftrac Tilt-Up Kit is an easy-to-install accessory for your RoofTrac system. This kit allows your solar array to be tilted at the optimum angle.
Engineering: 50 lbs per square ft. (Selected modules only).
125 MPH approximate wind load. Modules supported by the tilt-up kit:
BP Solar
Kyocera
Sharp
SolarWorld

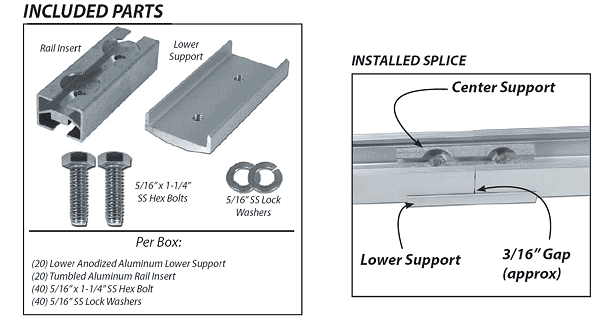

The splice kit allows multiple lengths of support rail to be secured at time of installation. Hindling excessively long pieces of rail can be daunting to the installer and logistically difficult to transport to the job site. The splice kit allows both the freight company and the installation company to transport the rail more easily and economically. The splice kit can be installed to allow for the expansion and contraction of the aluminum channel when installed at longer lengths.
|

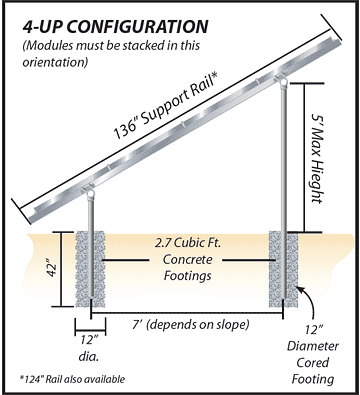

Top-Down PV Mounting System for Ground Applications Simplicity in
Design The Groundtrac system is the perfect solution for mounting PV modules on hillsides or flat grade. GroundTrac is an excellent solution for rural properties that require lower profiles for residential and commercial applications. The simple and logical design of the Ground Trac mounting system gets the job done with minimal parts. This system allows the installer to complete the job quickly. Fast Installation Aesthetically
pleasing Anodized
Aluminum Efficient Design Capacity / Specifications : • Utilizes 1-1/2"
Schedule #40 Galvanized Pipe (Available at any home improvement center or
plumbing supply)
• BP Solar
|
|
Make This WebPage instantly available in other languages
Solar grid-tie systems 10kW and larger available for more information
Information provided in this site is deemed reliable but and should be independently verified.
|
|
PROMOTING CONSCIOUSNESS ON THE INTERNET
WebMaster
HYDROPONIC NATIONAL DEFENCE BUSINESS PERPETUAL SOLAR POWER FAVORITES LINKS
Major redesign
and new functionality still under heavy development,
it's a huge undertake
Sharp ND-224U2 Solar Panel
SEAL
The Multi-Contact Solarline family of connectors delivers a
flexible system solution for time-saving, dependable series-cabling of
solar modules. Most module manufacturers supply their grid-tie modules
with pre-assembled output cables, tested and ready for connection. This
saves considerable time during an installation and greatly increases
reliability over wire junction boxes. These cable couplers are fully touch
protected and designed for up to 1000 volts and 30 amps. They are also
waterproof. For parallel connection of modules in 12 to 48 volt systems,
Multi-Contact cables makes branch connectors for use with currents up to
30 amps.
Modules engineered with the GroundTrac
System:
