Wind Turbines
Make This WebPage instantly available in other languages

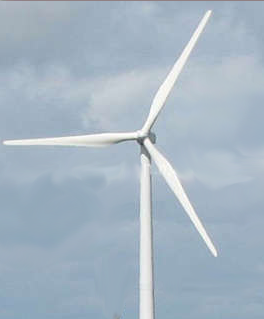

12kw Wind Turbine Generator System (CH-TYN414)
Product Details
12kw Wind Turbine Generator System (CH-TYN414)
Product Description
Packing: Carton and Wood Packing Model NO.: CH-TYN414 Standard: Customized Productivity: 4, 000 PCS/Month Unit Price: US $ 1200-2500/ Set Shipment Terms: FOB Payment Terms: L/C,T/T,Western Union Minimum Order: 1 Sets Price Valid Time: TEMPORARY HS Code: 9405500000 Trademark: ChenHui Origin: Tianjin, China Number of Blade: Three Blade Stress Way of Blade: Resistance Rotating Shaft: Horizontal Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe Wind turbine
Technology & Innovation
Sealed Sweden SKF bearingn
Unique designsn to keep water and moisture out
Unique anti-Vibration designn
Efficientn aero-dynamic design
Electromagnetic emergency breaking system
Unique earth permanent magnetic material
Low noise level
Durability
High salt fog, dust n& sand resistance
Strong wind resistancen & high survival wind speed.
Rated power (W) 500 Maximum output power (W) 1000 Charging voltage (V) DC 24 Blade quantity 3 Blade material GRP Blade diameter (ft. ) 9 (2.7m) Start-up wind speed (mph) 7 (3.0m/s) Rated wind speed (mph) 16 (7.0m/s) Rated rotating rate (r/min) 600 Wind energy utilizing ratio (Cp) 0.48 Generator output Frequency conversion AC Output AC frequency (Hz) 0~300 Rated charging current (A) 16.7 The maximum charging current (in a short time)(A) 25 Generator efficiency > 0.78 Tower diameter (in. ) ø 3.0*78.7*0.1 (ø 76*2000*3 mm)(3pcs) Tower height (ft. ) 20 (6m) Generator weight (lb) 14 (6.5kg) Suggested Battery (Ah) 120/150
30kw Wind Turbine
Product Details
30kw Wind Turbine
Product Description
Packing: Plywood and Nude Cases Standard: CE Productivity: 200 Sets/Year Unit Price: Negotiable Shipment Terms: by sea; Shanghai port Payment Terms: L/C,T/T Price Valid Time: TEMPORARY HS Code: 8502310000 Origin: China Number of Blade: Three Blade Stress Way of Blade: Resistance Rotating Shaft: Horizontal Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe 30KW wind turbine parameters:
Rated power(W): 30000
Rated voltage(V): 360
Rotor diameter(m): 12
Start-up wind speed(m/s): 2.5
Cut-in wind speed(m/s): 3.5
Rated wind speed(m/s): 12.5
Survival wind speed(m/s): 45
Furling type: Electronic
Rated rotating speed(RPM): 75
Generator work way: Permanent magnet
Blades No.: 3
Blades material: Fiber glass
Matched inverter type: Sinve wave30kw wind turbine Generator:
1. Type: Synchronous
2. Rating: 30kw, 75 rpm, 360DCV
3. Generator: Permanent magnet (ND-Fe-B)
4. Certificate: CE30kw wind turbine Operational Data:
1. Start-up wind speed: 2.5m/s
2. Rated wind speed: 12.5m/s
3. Cut-out wind speed: 20m/s
4. Survival wind speed: 45m/s30kw wind turbine blades:
1. Fiberglass reinforced polyester
2. Technology: Via foaming30kw wind turbine controller:
1. Mitsubishi PLC
2. Schneider contactor
3. GPRS/ADSL remote control
4. Touch screen interface
5. Fiber glass30kw wind turbine protection mode:
1. Yaw
2. Hydraulic brake
3. Dumpload
4. Manual/Automatic
|

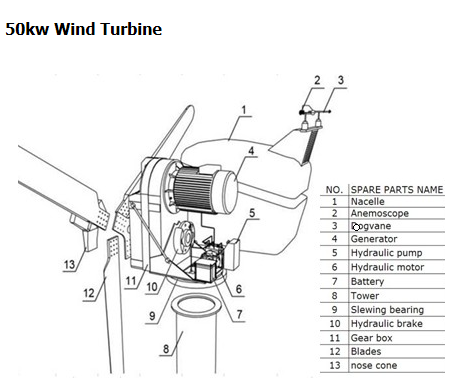

50kw Wind Turbine
Product Description |

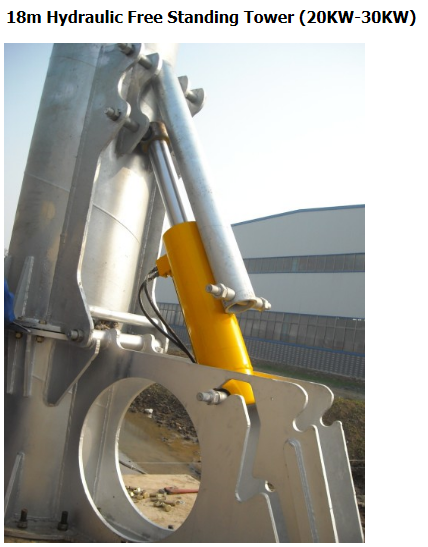

18m Hydraulic Free Standing Tower
(20KW-30KW)
Product Details
18m Hydraulic Free Standing Tower (20KW-30KW)
Packing: Plywood Model NO.: 20KW-30KW Standard: 18m Productivity: 2000 Sets/Year Unit Price: Negotiable Shipment Terms: by Sea Payment Terms: L/C,T/T Minimum Order: 1 Set Price Valid Time: TEMPORARY HS Code: 8502320000 Trademark: HB Origin: China Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

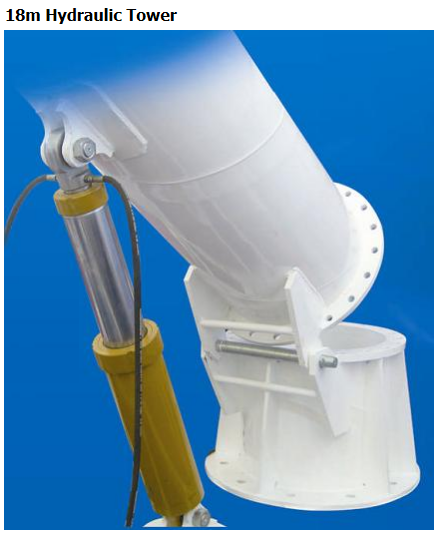

18m Hydraulic Tower
Product Details
18m Hydraulic Tower
Unit Price: Negotiable Shipment Terms: by sea; Shanghai port Payment Terms: L/C,T/T Price Valid Time: TEMPORARY HS Code: 8502310000 Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe Product Description
Hydraulic towers are applied to 20kw, 30kw and 50kw wind turbine generators. Compared to the traditional guy cable tower, hydraulic tower enjoys the advantages of handsome exterior and taking small room (burdensome steel wires); Compared to the traditional tapered tower, the most outstanding merit for hydraulic tower is that wind turbine generator can be erected and laid down automatically through the appliance of hydraulic system to achieve installation and maintenance. So there is no need the cooperation of the crane, which will save the installation and maintenance cost to a great extent.
High Quality at Unbeatable Prices and Built to Last

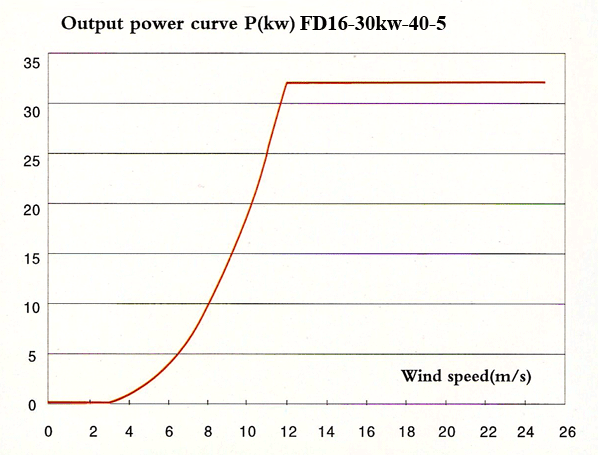

500W to 20kW Wind Turbines (FD16-30kw-40-5 Model) “Adjustable-Pitch”
30kW “Adjustable-Pitch”
