Battle the Global Water Crisis with HOME and COMERCIAL MODELS of Atmospheric Drinking Water Generator!

• 97% of the earth's water is in the oceans . . .
  but It is undrinkable and unusable for most culinary and commercial purposes.

• Only 3% of the world's water is fresh . . .
  with 2/3 of that being locked in glaciers and polar ice caps.

• Of the remaining 1%, about 1/2 is located beneath the earth's surface.

• The other 1/2 is found in rivers and lakes . . .
  with a significant percent severely polluted or biologically contaminated.

• Pollution has begun to reach our underground water as well.

• Global warming is causing more frequent and severe droughts.

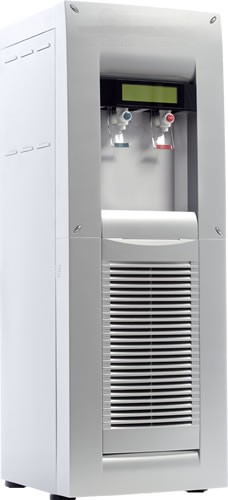

Atmospheric Drinking Water Generator
Guaranteed 99.9% pure drinking water, no matter where you place us!!!

Atmospheric pure water dispenser—water generator transforms air into pure water without having to resort to any water source with VFD indication, shows the temperature, humidity of the current environment.

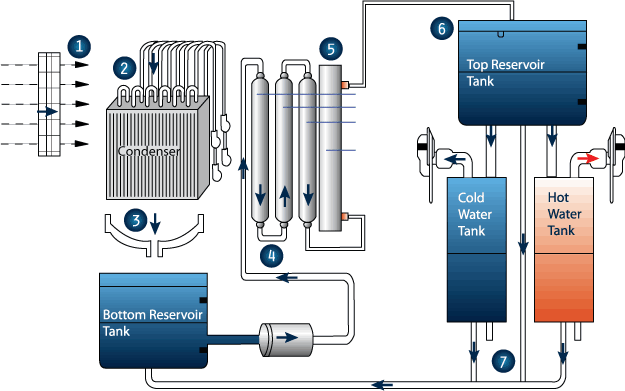

How Atmospheric Water Generators work

1. The machine first pulls air through an electrostatic filter, removing 93% of all air born particles.


2. A condensation unit receives this clean humid airflow and condenses water vapor into liquid.


3. As the machine collects the water, it drops into a collection tray and immediately passes into Ultraviolet (UV) light, where the water stays in contact with UV rays for approximately 30 minutes. This kills over 90% of all germs and bacteria in the water.


4. The water is then pumped through a sediment screen and then through 2 solid block activated carbon (SBAC) 1 micron filters, which removes over 90% of any volatile organic chemicals (VOCs) that may be in the water.


5. The water is then filtered through AWS's proprietary ultrafiltration (UF) membrane, with a pore size of .015 micron, to remove virtually all bacteria and common viruses.


6. The water is then pumped into a reservoir tank.


7. From the reservoir tank, the water is recycled every 30 minutes through the UV and back into the reservoir tank.


8. The water is then chilled or heated and dispensed at the consumer's convenience.

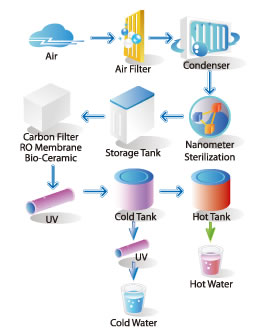

   The AWS™ Technology:





STANDARD HOME AND COMERCIAL MODELS   "New" 20L, 30L and 50L AWG now offers a stainless steel water tank being manufactured with each model, offering water that continues to be outstanding and safe for drinking and cooking... "This Water Is Unbeatable"    Model: SDAW-20L Production capacity: 20L/24hr Condition: T: 15~32ºC RH: 40~95% Power Supply: 220V/50Hz, 110V/60Hz Rated Input (generation water): 220V/500W; 110V/400W Heating Capacity: 5L/H Rated Input (heating): 500W Cooling Capacity: 2L/H Rated Input (cooling) : 80W (when made with two compressors) Filter System: PP+CTO+RO+T33+UV or P+CTO+UF+T33+UV Packing size: 41x117cm QTY (20` 168 units / 40`332units) Model: ASWG-50L Stainless steel public water generator Transform air into pure water without resorting to any water source Technical data: Production capacity: 50L/24hr Condition: T:15~32ºC RH:40~95% Power supply: 220V/50HZ, 110V/60HZ Rated input (generation water): 850W Cooling capacity: 2L/H Rated input (cooling): 80W (when made with two compressors) Filter system: PP+CTO+UF+T33 Packing size: 38*39*114cm QTY: (20’/40’); 180units/360units  Model: ASWG-138L  Production capacity: 138L/day (25ºC/80% HR) Input power: 2KW Power: 220V/50HZ Wind volume: 1300m²/h Obstruction of the wind: <180pa Refrigeration: R22/ volume: 7 KG This machine should be connected with the POU drinker then heating & cooling the water if needed. Size: 420x480x1050mm   Model: ASWG -500L  Production capacity:   500L/day (25ºC/80% HR) Input power: 10KW Power: 380~220V/50HZ Wind volume: 5600m²/h Obstruction of the wind: <180pa Refrigeration: R22/ volume: 8.5 KG Size: 450x1240x1750mm Model: ASWG -1000L Production capacity:   1000L/day (25ºC/80% HR) Input power: 25.5KW Power: 380~220V/50HZ Wind volume: 1100m²/h Obstruction of the wind: <180pa Refrigeration: R22/ volume: 12 KG Size: 2100x1070x2050mm Model: DP™ DP™ Features: Membrane-filtered, UV-purified and treated cold water . . . generated from thin air digitally controlled heating and cooling elements which maintains precise hot and cold water temperature Easy connection to a tap water supply for filtered water on demand. Fully automated Superior Reliability and Dependability Minimal servicing and refurbishment costs Stainless steel reservoir LED Display Complete diagnostic control board with multiple redundant safety systems DP™ Specs: Dimensions: 16" x 19" x 43" Weight: 120 pounds (50 Kg) empty, 186 pounds (68 kg) full Water Storage Capacity Main Reservoir: 6.6 gallons (25 liters) Evaporation Collection Tank: .5 gallons (2 liters) Hot Water Tank: .5 gallons (2 liters) Cold Water Tank: .5 gallons (2 liters) Power Consumption: 471 W (making and chilling water) < Hot Water Heater: 300 W Refrigerant: R134 (environmentally friendly) 5 Stage Filter System: Electorstatic Filter Sediment Filter Pre-Carbon Filter Post Carbon Block Filter Ultra Violet 11w UV

Type of water	Viruses	Chemicals	Bacteria Germs	Dirt	Pollution	Residual Chlorine
AWS™ water	--	--	--	--	--	--
Hard water	*	*	*	*	*	*
Raw water	*	*	*	*	*	--
Boiled water	--	--	--	*	--	*
Glacier water	--	--	*	*	*	--
Filtered Water	--	--	*	--	--	*
De-ionized water	--	*	--	--	--	--
Bottled water	--	--	*	--	--	--



The Atmospheric water generator is a high tech product, making drinking water without resorting to any water source, this high tech state of the art machine is fit for an army, navigation, airport, hospital, schools, homes, business, "anywhere".Our Atmospheric water generator is good for developing countries that do not have clean drinking water resources available

ATMOSPHERIC WATER GENERATOR SYSTEM is a new, state of the art air to drinking water generating machine which takes humidity out of the air you breathe and turns it into pure drinking water.

The Atmospheric water generator has been designed to work outdoors in most hot or humid climates worldwide with humidity levels of 14%, 35% and up to 90%. Our Atmospheric water generators provide daily Safe drinking water affordably.

ATMOSPHERIC WATER GENERATOR SYSTEM BENEFITS :

• No external piping needed.
• No more bottled water bill.
• Minimal amount of energy to produce water.
• No more hustle to grocery stores and lifting of heavy bottled water.
• No need for a Dehumidifier.
• Daily 99.9% pure drinking water for you and your children manufactured by nature.
• Exceeding EPA requirements.
• Protects your expensive furniture from over moist environments.
• Protects your family from inhaling dust, bacteria and fungus.
• Delivers the purest water and freshest air to your world removing microns. Utilizing high intensity UV (ultra violet), it eliminates any microorganisms including bacteria and viruses.
• Operated by a microcomputer control system, it will automatically stop generating water when completely full.
• Average cost per gallon of pure drinking water is about 8 cents using our Atmospheric Drinking Water Generator.
• No need to spend hundreds or even thousands of dollars for single dehumidifier machine, or air Filters.

Pollution In Our Drinking Water

The following results are from water quality tests conducted on water sampled 05/01/05.

"Known carcinogens are found in drinking water as a direct consequence of chlorination, a long established public health practice for the disinfection of drinking water."

MICROORGANSIM	COMMON NAME
Bacteria
Legionella pneumophila	Legionnaires disease
Leptospira interrogans	Infectious jaundice
Mycobacterium tuberculosis	Tuberculosis causative
Neisseria catarrhalis	Parasite
Salmonella enteritidis	Gastroenteritis
Salmonella paratyphi	Enteric fever
Salmonella typhimurium	Gastroenteritis
Salmonella typhosa	Typhoid fever
Shigella dysenteriae	Dysentery
Staphylococcus epidermidis	Staph Infection (skin)
Vibrio cholerae	Cholera
Mould Spores
Penicillum digitatum	-
Yeast
Baker's yeast	-
Brewer's yeast	-
Common yeast cake	-
Saccharomyces var.	-
Viruses
Bacteriophage	E. Coli
Hepatitus virus	Hepatitus
Influenza virus	Common flu

---

HEVY DUTY - HOME AND COMERCIAL MODELS

Model Model Name Model Number Capacity in Liters Description   Mobile1 aw1000m 1000 Liters   Need water in more than one location? The 1000m mobile unit makes 1,000 liters of water daily where you need it, and stors up to 850 liters on-board. Water delivery system, dispenses water for cooking, cleaning, washing, showering and drinking.       Water & Ice aw100i 100 Liters   The AW100i combines proven technology of water extraction from the atmosphere, together with the built-in icemaker. Water and Ice...Twice as Nice, the world's first air-water ice maker.       Commercial aw120 120 Liters   The world's most versatile air water machine. In use in countries around the world, this machines stands tall and keeps on making water.        Worker aw250 250 Liters   Designed for small factories, workshops, clinic or hospital this machine dubbed the "Worker" delivers water continually as needed.       LifeSaver aw500 500 Liters   The LifeSaver can sustain 5 liters of water for 100 people daily. This machine can operate anywhere via PV Solar Energy Power System.        Villager aw1000 1000 Liters   The Villager, making water changing lives. 1,000 liters of water daily. No longer do village children have to seek water in blazing heat or in rain puddles or wait for trucks to deliver. The Villager is making a difference everywhere.        Irrigator aw5000 5000 Liters   Water for irrigation can be an impossible dream in many under-developed countries. The irrigator is here to deliver total water solutions. This machine can create the farmers "field-of-dreams".



---
